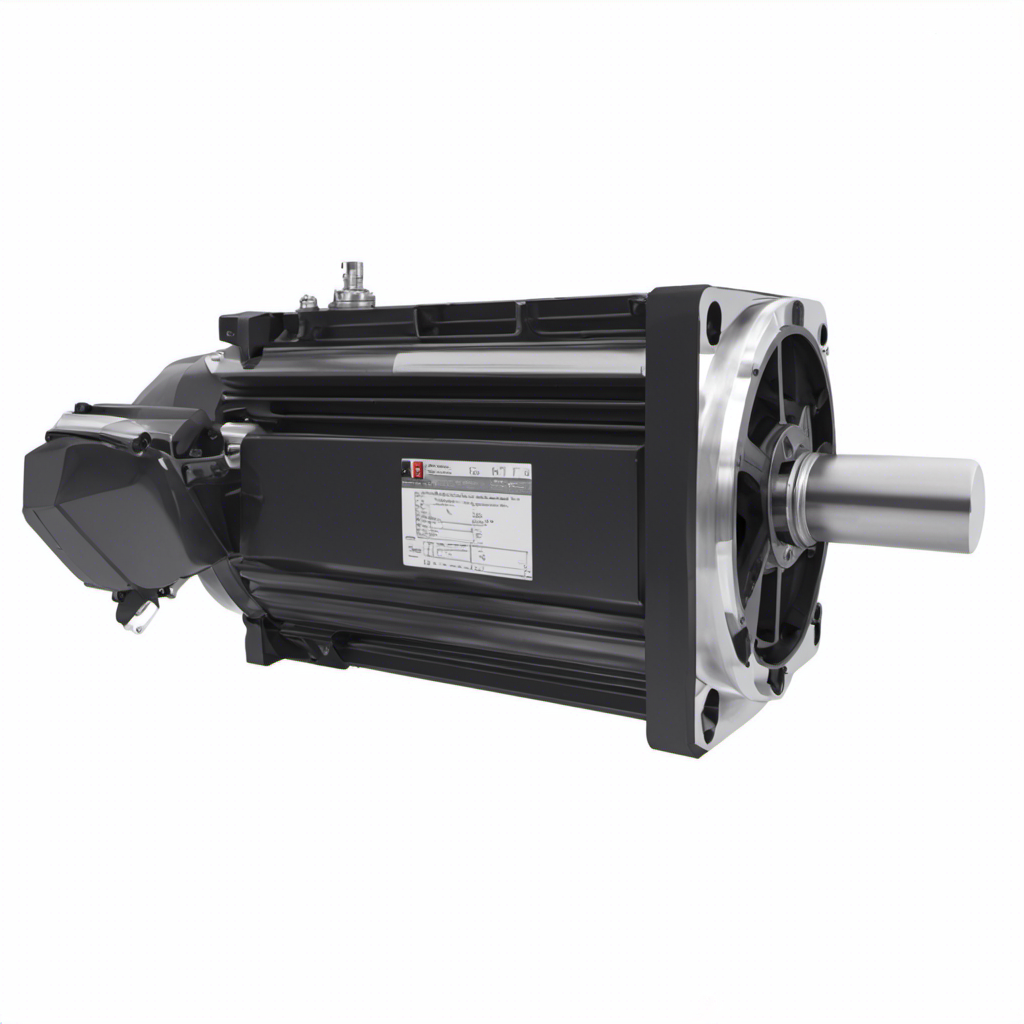

VPL-B1153E-QK12AA SERVO MOTOR · KINETIX VP LOW INERTIA | Allen Bradley

Load Force Ratings

Motors are capable of operating with a sustained shaft load.The location and direction of radial and axial load forces are shown in the figure,and maximum load rating values are in the tables.

Load    Forces    on    Shaft

Radial load force applied at the midpoint of the shaft extension.

-Axial load force applied to the center ofthe shaft.

The followingtables represent 20,000 hour L₁0 bearing fatiguelife at variousloads and speeds.This 20,000-hour bearinglife does not account for possible application-specific life reduction,such as bearing grease contamination from external sources.

Kinetix Low Inertia Motors (063 and 075 mm frame sizes)

Radial Load Force Ratings(maximum)for Non-brake Motors
