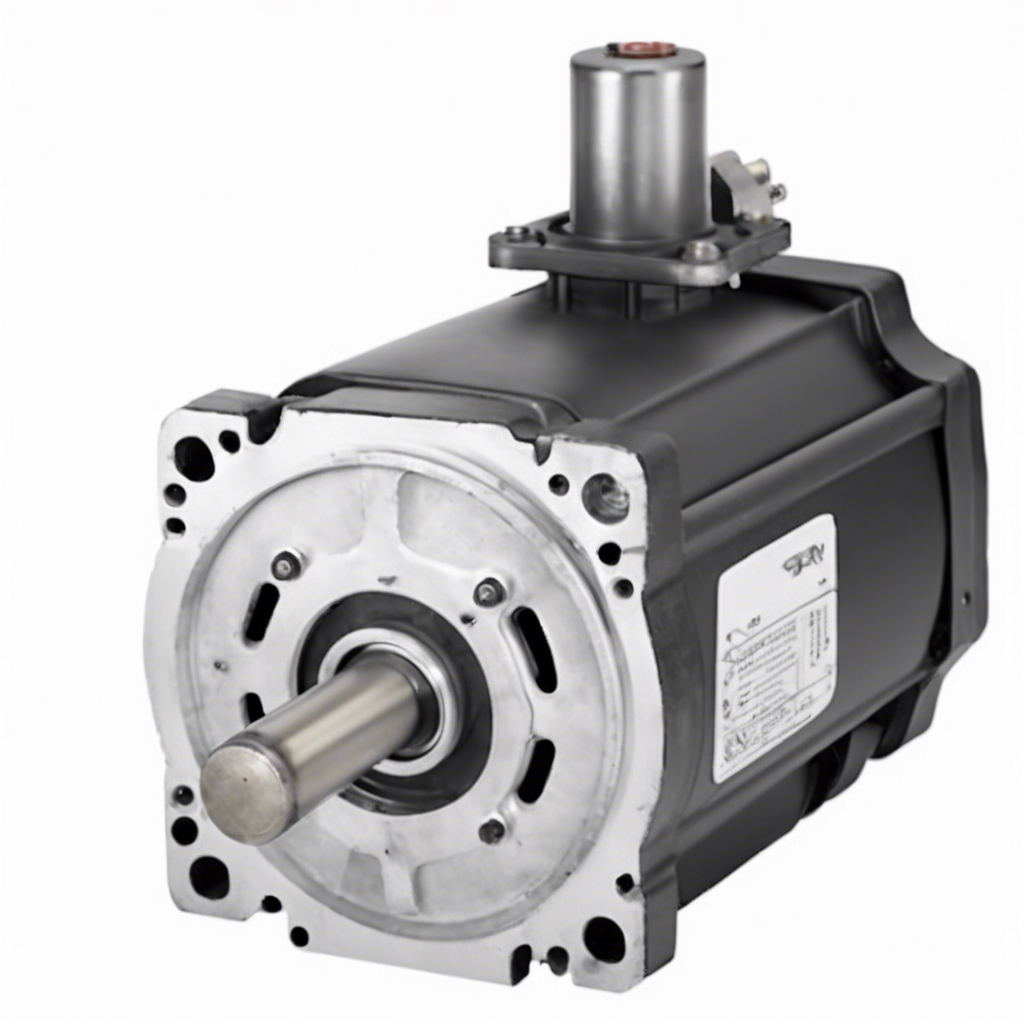

VPL-B0632T-WJ14AA VPL PERMANENT MAGNET ROTARY MOTOR, Servo Products | Allen Bradley
Type number: VPL-B0632T-WJ14AA, Part No.: VPLB0632TWJ14AA, from manufacturer: Allen Bradley, Catagory: Kinetix VP Servo Motors Drives & Motors, VPL Low Inertia Motors
della101@163.com
| Module No. | VPL-B0632T-WJ14AA |
| Product name | SERVO MOTOR; MP SERIES; KINETIX; PERMANENT MAGNET ROTARY MOTOR; LOW INERTIA; 240 VAC; 130 MM FRAME; 3 INCH STACK |
| Product description | VPL-B0632T-WJ14AA VPL PERMANENT MAGNET ROTARY MOTOR, Servo Products | Allen Bradley |
| Part number | VPLB0632TWJ14AA |
| Allen Bradley recommendation product | VPL-B0632T-WK12AA AC servo motor, PERMANENT MAGNET ROTARY MOTOR | Allen Bradley |
| Voltage | 230 VAC, 240 VAC, 480 VAC |
| Manufacturer | Allen Bradley |
| Country of origin | United States |
| Warranty | 1-2 year |
| Shipping Method | 1.Ship worldwide, usually 5-7 days. 2. We use DHL, FedEx, UPS,TNT |
| Remark | If you need a specific firmware or series relating to VPL-B0632T-WJ14AA, please call or email us, we probably have it in our large inventory. |
VPL-B0632T-WJ14AA VPL PERMANENT MAGNET ROTARY MOTOR, Servo Products | Allen Bradley
Kinetix TLP Servo Motor Thermal Ratings
| Motor Cat. No. | Heatsink Size
mm (in.) |
| TLP-A/B115-xxx | 300 x 300 x 12 (11.8 x 11.8 x 0.47) |
| TLP-A/B145-xxx | 400 x 400 x 20 (15.7 x 15.7 x 0.79) |
| TLP-A/B200-xxx | 550 x 550 x 30 (21.6 x 21.6 x 1.2) |
| TLP-A/B235-xxx | 650 x 650 x 35 (25.6 x 25.6 x 1.4) |
Environmental Ratings – Kinetix Rotary Motion
| IP Rating(1) | Dust Protection | Liquid Protection | Rotary Motor | Description | |
| IP30 | Objects larger than |
No protection from liquids. |
Kinetix TL and TLY | For on-motor cable connectors. | |
| TLP-A046,TLP-A/B070,
TLP-A/B090, and TLP-A100 |
|||||
|
IP40 |
Objects larger than |
TLP-A046,TLP-A/B070, (2)
TLP-A/B090, and TLP-A100 (2) |
Without shaft seal (standard) and with the use of Rockwell Automation factory-delivered 2090-Series cable connectors. | ||
| TLP-A/B115,TLP-A/B145,
TLP-A/B200, and TLP-A/B235 |
|||||
| IP50 |
Limited protection from dust (no harmful deposit). |
• KinetixVPL
• Kinetix MPL, MPM |
IP50 minimum, without shaft seal (standard). | ||
|
IP54 |
Protected against sprays from all directions. |
Kinetix HPK | With shaft seal (standard) and the use of Rockwell Automation factory- delivered 2090-Series cable connectors. | ||
| Kinetix MMA(3) | |||||
|
Kinetix TLand TLY (2) |
Without shaft seal (standard) and with the use of Rockwell Automation factory-delivered 2090-Series cable connectors. | ||||
|
IP65 |
Total protection from dust. |
Protected against low- pressure jets of water from all directions. |
With optional shaft sealand the use of Rockwell Automation factory- delivered 2090-Series cable connectors. | ||
| • Kinetix TLP
• VPC-Bxxxxx-Q |
With shaft seal (standard) and the use of Rockwell Automation factory- delivered 2090-Series single cable (KinetixVPC) or cable connectors
(Kinetix TLP). |
||||
| • VPC-Bxxxxx-S,VPC-Bxxxxx-Y, VPC-B3004x-M
• Kinetix RDB(4) |
With shaft seal (standard) and the use of Rockwell Automation factory- delivered 2090-Series cable connectors. | ||||
|
IP66 |
Protected against strong jets of water. |
• KinetixVPF
• Kinetix MPF |
With shaft seal (standard) and the use of Rockwell Automation factory- delivered 2090-Series single cable (KinetixVPF) or cable connectors
(Kinetix MPF). |
||
| • KinetixVPL
• Kinetix MPL, MPM |
With optional shaft sealand the use of Rockwell Automation factory- delivered 2090-Series single cable (KinetixVPL) or cable connectors (Kinetix MPL, MPM). | ||||
| •
• |
Kinetix VPS (4)
Kinetix MPS (4) |
With shaft sealand slinger (standard) and the use of Rockwell
Automation factory-delivered 2090-Series single cable (Kinetix VPS) or cable connectors (Kinetix MPS). |
|||
| Kinetix VPH(5) | With shaft seal (standard) and the use of Rockwell Automation factory- delivered 2090-Series single cable (KinetixVPH, VPF) or cable
connectors (Kinetix MPF). |
||||
|
IP67 |
Protected against the effects of temporary liquid immersion. |
• KinetixVPH (4), VPF
• Kinetix MPF |
|||
| •
• |
Kinetix VPS (4)
Kinetix MPS (4) |
With shaft sealand slinger (standard) and the use of Rockwell
Automation factory-delivered 2090-Series single cable (Kinetix VPS) or cable connectors (Kinetix MPS). |
|||
|
IP69K |
Protected against the effects of water/stream jets up to 100 bar
(1200 psi) with nozzle temperature at approximately 80 °C (176 °F). |
Kinetix VPH (2) | For 1200 psi motor washdown with shaft seal (standard). | ||
| •
• |
Kinetix VPS (2)
Kinetix MPS (2) |
For 1200 psi motor washdown with shaft seal and slinger (standard). | |||
IP rating descriptions are for reference only. Refer to the international standards for more complete rating descriptions.
