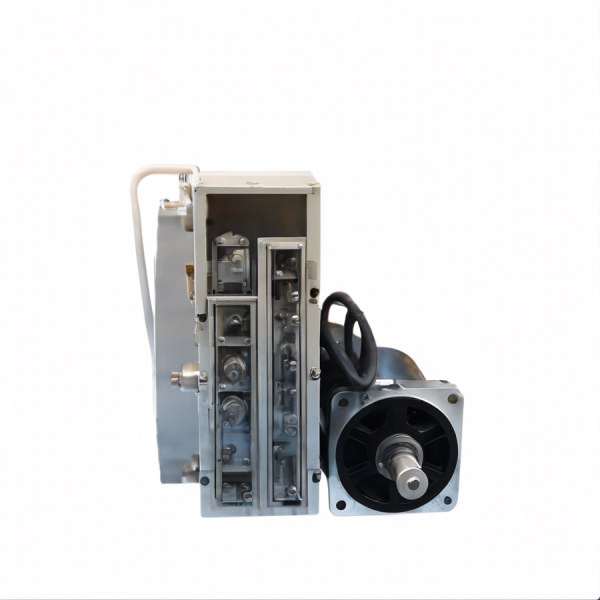

VPL-A1002C-PK12AA VPL Low Inertia Motors | Allen Bradley
Type number: VPL-A1002C-PK12AA, Part No.: VPLA1002CPK12AA, from manufacturer: Allen Bradley, Catagory: Kinetix VP Servo Motors Drives & Motors, VPL Low Inertia Motors
della101@163.com
Products Categories
Product Description
| Module No. | VPL-A1002C-PK12AA |
| Product name | 240V AC,100mm Bolt Circle Frame Size,2 (Two) Magnet Stacks,2500 RPM Rated Speed,Multi turn Encoder,Keyless Shaft,SpeedTec Right … |
| Product description | VPL-A1002C-PK12AA VPL Low Inertia Motors | Allen Bradley |
| Part number | VPLA1002CPK12AA |
| Allen Bradley recommendation product | VPL-A1002C-PK14AA VPL Low Inertia Motors | Allen Bradley |
| Voltage | 230 VAC, 240 VAC, 480 VAC |
| Manufacturer | Allen Bradley |
| Country of origin | United States |
| Warranty | 1-2 year |
| Shipping Method | 1.Ship worldwide, usually 5-7 days. 2. We use DHL, FedEx, UPS,TNT |
| Remark | If you need a specific firmware or series relating to VPL-A1002C-PK12AA, please call or email us, we probably have it in our large inventory. |
Product Catalogue
VPL-A1002C-PK12AA VPL Low Inertia Motors | Allen Bradley
Axial Load Force Ratings (maximum radial load) for Brake Motors
Motor
Cat. No. (1)
(1) 1.0 kgf = 2.2 lbf or 9.8 N. An asterisk (*) indicates a load rating that is measured at an rpm value that is less than the value listed for that column.
Speed, max
rpm
RPM
500
kgf
750
kgf
1000
kgf
1500
kgf
2000
kgf
2500
kgf
3000
kgf
3500
kgf
4000
kgf
4500
kgf
5000
kgf
5500
kgf
6000
kgf
6500
kgf
7000
kgf
VPL-A1001C 2800 31.0 – 23.0 – 17.0 – 14.0 * – – – – – – – –
VPL-A1001M 6500 – – – 19.0 – 15.0 – – – 12.0 – – – 10.0 –
VPL-A1002C 3000 34.0 – 25.0 – 18.0 – 15.0 – – – – – – – –
VPL-A1002F 5000 – – 25.0 21.0 – – 15.0 – – – 12.0 – – – –
VPL-A1003C 2250 36.0 – 26.0 22.0 – 18.0 * – – – – – – – – –
VPL-A1003E 3750 36.0 – 26.0 – 19.0 – – – 15.0 * – – – – – –
VPL-A1003F 5500 – – – 22.0 – 18.0 – – 14.0 – – 12.0 – – –
VPL-A1152B 2150 50.0 – 37.0 31.0 – 26.0 * – – – – – – – – –
VPL-A1152E 3300 51.0 – 37.0 – 27.0 – – 22.0 * – – – – – – –
VPL-A1152F 5000 – – 37.0 – 27.0 – 23.0 – – – 18.0 – – – –
VPL-A1153C 2300 53.0 – 39.0 32.0 – 27.0 * – – – – – – – – –
VPL-A1303B 1950 46.0 – 34.0 28.0 25.0 * – – – – – – – – – –
VPL-A1303F 4000 – – 34.0 – 25.0 – 21.0 – 18.0 – – – – – –
VPL-A1304A 1600 48.0 40.0 36.0 * – 29.0 * – – – – – – – – – –
VPL-A1304D 3000 48.0 – 36.0 – 26.0 – 22.0 – – – – – – – –
VPL-A1306C 2000 52.0 – 42.0 * 33.3 * 28.0 – – – – – – – – – –
VPL-B1001M 6000 – – – – 17.0 – 14.0 – 12.0 – – – 10.0 – –
VPL-B1002E 3300 34.0 – 25.0 – 18.0 – – 15.0 * – – – – – – –
VPL-B1002M 6000 – – – 21.0 – – 15.0 – – 13.0 – – 11.0 – –
VPL-B1003C 2500 36.0 – 26.0 22.0 – 18.0 – – – – – – – – –
VPL-B1003F 4750 – – 26.0 22.0 – – 16.0 – – – 13.0 * – – – –
VPL-B1003T 7000 – – – 22.0 – 18.0 – – – 13.0 – – – – 11.0
VPL-B1152C 2250 51.0 – 37.0 31.0 – 26.0 * – – – – – – – – –
VPL-B1152F 4500 – – 37.0 – 27.0 – 23.0 – – 19.0 – – – – –
VPL-B1152T 6500 – – – 31.0 – 25.0 – – 20.0 – – – – 16.0 –
VPL-B1153E 3200 53.0 – 39.0 – 29.0 – – 23.0* – – – – – – –
VPL-B1153F 5000 – – 39.0 – 29.0 – 24.0 – – – 19.0 – – – –
VPL-B1303C 2250 46.0 – 34.0 28.0 – 24.0 * – – – – – – – – –
VPL-B1303F 4000 – – 34.0 – 25.0 – 21.0 * – 18.0 – – – – – –
VPL-B1304C 2150 48.0 – 36.0 31.0 * – 25.0 * – – – – – – – – –
VPL-B1304E 3500 – – 36.0 30.0 – 25.0 * – 20.0 – – – – – – –
VPL-B1306C 2500 52.0 – 38.0 – 31.0 * 25.0 – – – – – – – – –
VPL-B1306F 4250 – – 38.0 – 28.0 – 24.0 – – 20.0 * – – – – –
VPL-B1651C 2750 58.0 – 43.0 – 34.0 * – 27.0 * – – – – – – – –
VPL-B1651F 4750 – – 43.0 – 31.0 – 26.0 – – – 21.0 * – – – –
VPL-B1652C 2700 64.0 – 47.0 39.0 – – 30.0 * – – – – – – – –
VPL-B1652F 4000 – – 47.6 40.0 – 32.0 – – 26.1 – – – – – –
VPL-B1653C 2300 68.0 – 50.0 43.0 * – 35.0 * – – – – – – – – –
VPL-B1653D 3000 – – 50.7 45.3 * 39.3 * – 31.5 – – – – – – – –
VPL-B1654B 1850 71.0 59.0 – 50.0 * 40.0 * – – – – – – – – – –
VPL-B1654D 3000 – – 52.9 44.4 39.2 – 32.9 – – – – – – – –
Motor
Cat. No. (1)
(1) 1.0 kgf = 2.2 lbf or 9.8 N. An asterisk (*) indicates a load rating that is measured at an rpm value that is less than the value listed for that column.
Speed, max
rpm
RPM
500
kgf
750
kgf
1000
kgf
1500
kgf
2000
kgf
2500
kgf
3000
kgf
3500
kgf
4000
kgf
4500
kgf
5000
kgf
5500
kgf
6000
kgf
6500
kgf
7000
kgf
VPL-A1001C 2800 31.0 – 23.0 – 17.0 – 14.0 * – – – – – – – –
VPL-A1001M 6500 – – – 19.0 – 15.0 – – – 12.0 – – – 10.0 –
VPL-A1002C 3000 34.0 – 25.0 – 18.0 – 15.0 – – – – – – – –
VPL-A1002F 5000 – – 25.0 21.0 – – 15.0 – – – 12.0 – – – –
VPL-A1003C 2250 36.0 – 26.0 22.0 – 18.0 * – – – – – – – – –
VPL-A1003E 3750 36.0 – 26.0 – 19.0 – – – 15.0 * – – – – – –
VPL-A1003F 5500 – – – 22.0 – 18.0 – – 14.0 – – 12.0 – – –
VPL-A1152B 2150 50.0 – 37.0 31.0 – 26.0 * – – – – – – – – –
VPL-A1152E 3300 51.0 – 37.0 – 27.0 – – 22.0 * – – – – – – –
VPL-A1152F 5000 – – 37.0 – 27.0 – 23.0 – – – 18.0 – – – –
VPL-A1153C 2300 53.0 – 39.0 32.0 – 27.0 * – – – – – – – – –
VPL-A1303B 1950 46.0 – 34.0 28.0 25.0 * – – – – – – – – – –
VPL-A1303F 4000 – – 34.0 – 25.0 – 21.0 – 18.0 – – – – – –
VPL-A1304A 1600 48.0 40.0 36.0 * – 29.0 * – – – – – – – – – –
VPL-A1304D 3000 48.0 – 36.0 – 26.0 – 22.0 – – – – – – – –
VPL-A1306C 2000 52.0 – 42.0 * 33.3 * 28.0 – – – – – – – – – –
VPL-B1001M 6000 – – – – 17.0 – 14.0 – 12.0 – – – 10.0 – –
VPL-B1002E 3300 34.0 – 25.0 – 18.0 – – 15.0 * – – – – – – –
VPL-B1002M 6000 – – – 21.0 – – 15.0 – – 13.0 – – 11.0 – –
VPL-B1003C 2500 36.0 – 26.0 22.0 – 18.0 – – – – – – – – –
VPL-B1003F 4750 – – 26.0 22.0 – – 16.0 – – – 13.0 * – – – –
VPL-B1003T 7000 – – – 22.0 – 18.0 – – – 13.0 – – – – 11.0
VPL-B1152C 2250 51.0 – 37.0 31.0 – 26.0 * – – – – – – – – –
VPL-B1152F 4500 – – 37.0 – 27.0 – 23.0 – – 19.0 – – – – –
VPL-B1152T 6500 – – – 31.0 – 25.0 – – 20.0 – – – – 16.0 –
VPL-B1153E 3200 53.0 – 39.0 – 29.0 – – 23.0* – – – – – – –
VPL-B1153F 5000 – – 39.0 – 29.0 – 24.0 – – – 19.0 – – – –
VPL-B1303C 2250 46.0 – 34.0 28.0 – 24.0 * – – – – – – – – –
VPL-B1303F 4000 – – 34.0 – 25.0 – 21.0 * – 18.0 – – – – – –
VPL-B1304C 2150 48.0 – 36.0 31.0 * – 25.0 * – – – – – – – – –
VPL-B1304E 3500 – – 36.0 30.0 – 25.0 * – 20.0 – – – – – – –
VPL-B1306C 2500 52.0 – 38.0 – 31.0 * 25.0 – – – – – – – – –
VPL-B1306F 4250 – – 38.0 – 28.0 – 24.0 – – 20.0 * – – – – –
VPL-B1651C 2750 58.0 – 43.0 – 34.0 * – 27.0 * – – – – – – – –
VPL-B1651F 4750 – – 43.0 – 31.0 – 26.0 – – – 21.0 * – – – –
VPL-B1652C 2700 64.0 – 47.0 39.0 – – 30.0 * – – – – – – – –
VPL-B1652F 4000 – – 47.6 40.0 – 32.0 – – 26.1 – – – – – –
VPL-B1653C 2300 68.0 – 50.0 43.0 * – 35.0 * – – – – – – – – –
VPL-B1653D 3000 – – 50.7 45.3 * 39.3 * – 31.5 – – – – – – – –
VPL-B1654B 1850 71.0 59.0 – 50.0 * 40.0 * – – – – – – – – – –
VPL-B1654D 3000 – – 52.9 44.4 39.2 – 32.9 – – – – – – – –
