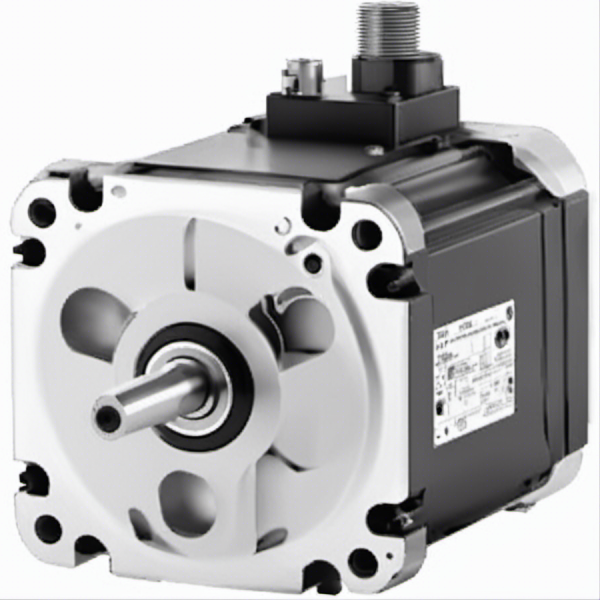

VPL-A0753E-CK12AA Servo Motor, Low Inertia | Allen Bradley
Type number: VPL-A0753E-CK12AA, Part No.: VPLA0753ECK12AA, from manufacturer: Allen Bradley, Catagory: Kinetix VP Servo Motors Drives & Motors, VPL Low Inertia Motors
della101@163.com
Products Categories
Product Description
| Module No. | VPL-A0753E-CK12AA |
| Product name | 240V AC, 75mm Bolt Circle Frame Size, 3 (Three) Magnet Stacks, 3500 RPM Rated Speed, Single-turn … |
| Product description | VPL-A0753E-CK12AA Servo Motor, Low Inertia | Allen Bradley |
| Part number | VPLA0753ECK12AA |
| Allen Bradley recommendation product | VPL-A0753E-PJ12AA Servo Motor, Low Inertia, 240V AC | Allen Bradley |
| Voltage | 230 VAC, 240 VAC, 480 VAC |
| Manufacturer | Allen Bradley |
| Country of origin | United States |
| Warranty | 1-2 year |
| Shipping Method | 1.Ship worldwide, usually 5-7 days. 2. We use DHL, FedEx, UPS,TNT |
| Remark | If you need a specific firmware or series relating to VPL-A0753E-CK12AA, please call or email us, we probably have it in our large inventory. |
Product Catalogue
VPL-A0753E-CK12AA Servo Motor, Low Inertia | Allen Bradley
KinetixVPL Servo Motor Brake Specifications
| Motor Cat. No. | Backlash, max
(brake engaged) arc minutes |
Holding
Torque N•m (lb•in) |
Coil Current
at 24V DC A |
Brake Response Time | Brake Rotor Inertia
kg-m2 (lb•in•s2) |
Brake Motor Weight,
kg(ap)b(r)x |
|
| Release
ms |
Engage(1)
ms |
||||||
| VPL-A/B0631 |
30 |
1.50 (13) |
0.297…0.363 |
38 |
25 |
0.0000118 (0.00010) | 1.36 (3.0) |
| VPL-A/B0632 | 0.0000194 (0.00017) | 1.70 (3.74) | |||||
| VPL-A/B0633 | 0.0000271 (0.00024) | 2.02 (4.45) | |||||
| VPL-A/B0751 |
3.0 (27) |
0.567…0.693 |
66 |
42 |
0.0000182 (0.00016) | 2.06 (4.54) | |
| VPL-A/B0752 | 0.0000297 (0.00026) | 2.62 (5.77) | |||||
| VPL-A/B0753 | 0.0000412 (0.00036) | 3.18 (7.0) | |||||
| VPL-A/B1001 |
30 |
4.18 (37) |
0.45…0.55 |
90 |
65 |
0.000059 (0.00052) | 3.26 (7.19) |
| VPL-A/B1002 | 0.000093 (0.00082) | 4.20 (9.24) | |||||
| VPL-A/B1003 | 0.000135(0.0012) | 5.08 (11.19) | |||||
| VPL-A/B1152 | 6.55 (58) | 0.621…0.759 | 90 | 95 | 0.000289 (0.0025) | 5.43 (11.95) | |
| VPL-A/B1153 | 0.000409 (0.0036) | 6.88 (15.15) | |||||
| VPL-A/B1303 |
14.10 (125) |
0.738…0.902 |
125 |
120 |
0.000433 (0.0038) | 8.64 (19.03) | |
| VPL-A/B1304 | 0.000553 (0.0049) | 10.21 (22.48) | |||||
| VPL-A/B1306 | 0.000813 (0.0072) | 13.32 (29.33) | |||||
| VPL-B1651 |
32.0 (283) |
1.053…1.287 |
140 |
120 |
0.000845 (0.0075) | 17.15 (37.78) | |
| VPL-B1652 | 0.00153 (0.013) | 19.65 (43.32) | |||||
| VPL-B1653 | 0.00219 (0.019) | 22.51 (49.58) | |||||
| VPL-B1654 | 0.00295 (0.026) | 27.50 (60.63) | |||||
(1) By using diode and zener diode as arc suppression device in external control circuit.
