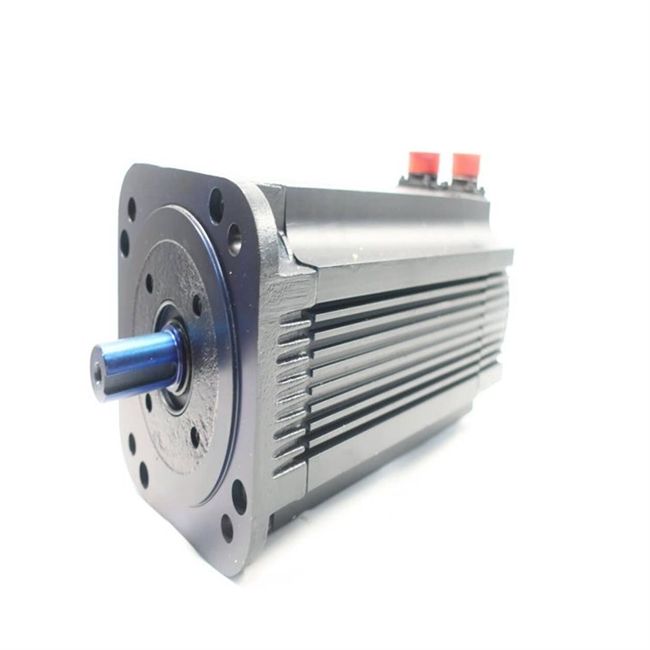

VPL-A0752E-PJ14AS VPL Low Inertia Motor | Allen Bradley

Catalog Numbers – Kinetix HPK Servo Motors

Catalog numbers consist of various characters, each of which identifies a specific option for that component. Use the catalog numbering table chart below to understand the configuration of your motor. For questions regarding product availability, contact your Allen-Bradley distributor.

HPK – x xxxx x – x x x x x A

Factory Options

A = Standard

Mounting Type/Shaft Key

A = IEC metric, free mounting holes (type FF), foot mount and flange mount/Keyed shaft B = IEC metric, free mounting holes (type FF), foot mount only/Keyed shaft (2)

Brake

2 = No brake

4 = Holding brake 380…460VAC

Connections

4 = Feedback – right angle, 180° rotatable

Power -junction box

Blower/Junction Box Location

A = Inline blower, F3 junction box (no brake only)

B = Top-mounted blower, F1 junction box (brake only)

C = Top-mounted blower, F2 junction box (brake only)

Feedback

M = 1024 sin/cos, absolute multi-turn encoder (Hiperface protocol)

S = 1024 sin/cos, absolute single-turn encoder (Hiperface protocol)

Rated Speed(3)

C = 1500 rpm

E = 3000 rpm

Frame Size(3)

1307160918152510

130816112010

131016132212

Voltage Class

B = 460V

E = 400V

Series

HPK = Kinetix HPK asynchronous servo motors

(1)

(1)     Applies to only HPK-B/E13xx and HPK-B/E16xx motors.

(2)    Applies to only HPK-B/E18xx, HPK-B/E20xx, HPK-B22xx, and HPK-B25xx motors.

(3)    Not all combinations are available. Only the configurations for rated speed and frame size, as listed in Kinetix HPK Servo Motor (460V) Performance Specifications on page 167 and Kinetix HPK Servo Motor (400V) Performance Specifications on page 167, are available. Use Motion Analyzer software to size and select motors for your application.

Kinetix HPK Servo Motor Encoders

Kinetix HPK servo motors are available with high performance encoders with a choice of single-turn (-S) or multi-turn (-M) high-resolution feedback:

•     1024sin/coscycles per revolution for up to 21-bit resolution (2,097,152 counts per revolution) -M and -S (HPK-Bxxxx and HPK-Exxxx motors).
•     Single-turn encoderprovideshigh-resolution absolute position feedback within one turn.
•      Multi-turn encoderprovides high-resolution absoluteposition feedback within 4096 turns. The electromechanical design does not require a battery.
