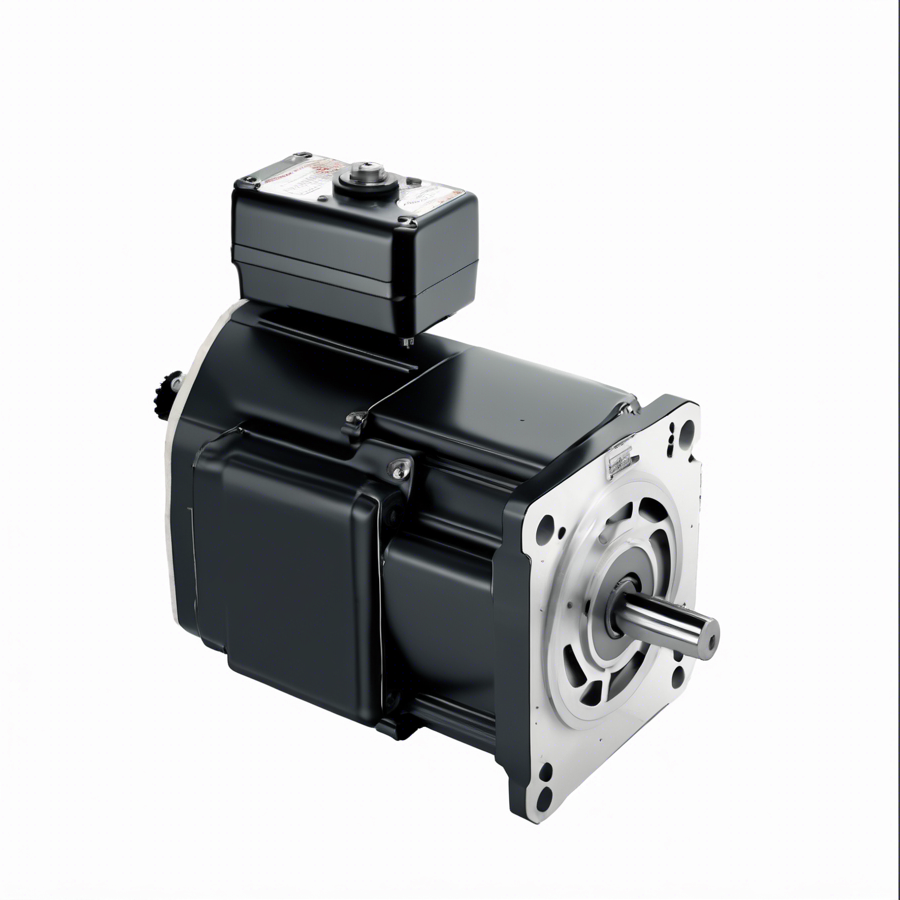

VPL-A0752E-CK12AA KINETIX VP LOW INERTIA SERVO MOTOR | Allen Bradley
Type number: VPL-A0752E-CK12AA, Part No.: VPLA0752ECK12AA, from manufacturer: Allen Bradley, Catagory: Kinetix VP Servo Motors Drives & Motors, VPL Low Inertia Motors
della101@163.com
| Module No. | VPL-A0752E-CK12AA |
| Product name | Low Inertia, 240V AC, 75mm Bolt Circle Frame Size, 2 (Two) Magnet Stacks, 3500 RPM Rated Speed, Single-turn Encoder, Keyless Shaft, … |
| Product description | VPL-A0752E-CK12AA KINETIX VP LOW INERTIA SERVO MOTOR | Allen Bradley |
| Part number | VPLA0752ECK12AA |
| Allen Bradley recommendation product | VPL-A0752E-CK14AA VPL Low Inertia Motors | Allen Bradley |
| Voltage | 230 VAC, 240 VAC, 480 VAC |
| Manufacturer | Allen Bradley |
| Country of origin | United States |
| Warranty | 1-2 year |
| Shipping Method | 1.Ship worldwide, usually 5-7 days. 2. We use DHL, FedEx, UPS,TNT |
| Remark | If you need a specific firmware or series relating to VPL-A0752E-CK12AA, please call or email us, we probably have it in our large inventory. |
VPL-A0752E-CK12AA KINETIX VP LOW INERTIA SERVO MOTOR | Allen Bradley
Performance Specifications (Frame 70) with 400V-class (three-phase) Drives
| Linear Thruster
Cat. No. |
Velocity, max
460VAC m/s |
System Continuous
Stall Current Amps 0-pk |
System Continuous
Stall Force N (lb) |
System PeakStall Current
Amps 0-pk |
System PeakStall
Force N (lb) |
Rated Output 460V AC
kW |
| LDAT-S072010-Dxx | 3.9 |
6.0 |
364 (82) |
22.0 |
1055 (237) |
1.37 |
| LDAT-S072020-Dxx |
5.0 |
1.64 |
||||
| LDAT-S072030-Dxx
… LDAT-S072070-Dxx |
||||||
| LDAT-S072010-Exx
… LDAT-S072070-Exx |
3.5 | 3.0 | 11.0 | 1.03 | ||
| LDAT-S073010-Dxx | 4.4 |
9.0 |
554 (125) |
32.8 |
1576 (354) |
2.27 |
| LDAT-S073020-Dxx
… LDAT-S073070-Dxx |
5.0 | 2.50 | ||||
| LDAT-S073010-Exx
… LDAT-S073070-Exx |
2.4 | 3.0 | 10.9 | 1.01 |
16 Rockwell Automation Publication KNX-TD002G-EN-P – June 2023
Kinetix LDAT Integrated Linear Thrusters
Performance Specifications (Frame 70) with 400V-class (three-phase) Drives (continued)
| Linear Thruster
Cat. No. |
Velocity, max
460VAC m/s |
System Continuous
Stall Current Amps 0-pk |
System Continuous
Stall Force N (lb) |
System PeakStall Current
Amps 0-pk |
System PeakStall
Force N (lb) |
Rated Output 460V AC
kW |
| LDAT-S074010-Dxx | 4.7 |
11.9 |
730 (164) |
43.5 |
2088 (469) |
3.15 |
| LDAT-S074020-Dxx
… LDAT-S074070-Dxx |
5.0 | 3.30 | ||||
| LDAT-S074010-Exx
… LDAT-S074070-Exx |
3.5 | 6.0 | 21.7 | 2.08 | ||
| LDAT-S076010-Dxx
… LDAT-S076070-Dxx |
5.0 | 18.2 |
1122 (252) |
66.4 |
3189 (717) |
5.02 |
| LDAT-S076010-Exx
… LDAT-S076070-Exx |
3.5 | 9.1 | 33.2 | 3.18 |
